Some examples of Network Topologies

Standard Hub

10 Base T Network

Bus Network

All computer should be connected individually to a point on the bus. Each peripheral should be connected to the appropreate computer.

Star Network

Each computer should be connected to a central hub with an individual cable. Each peripheral should be connected to the appropreate computer, and there should be no terminators.

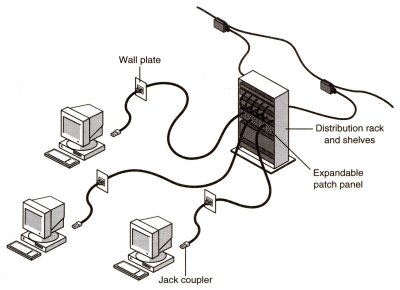

Patch Panel Use
